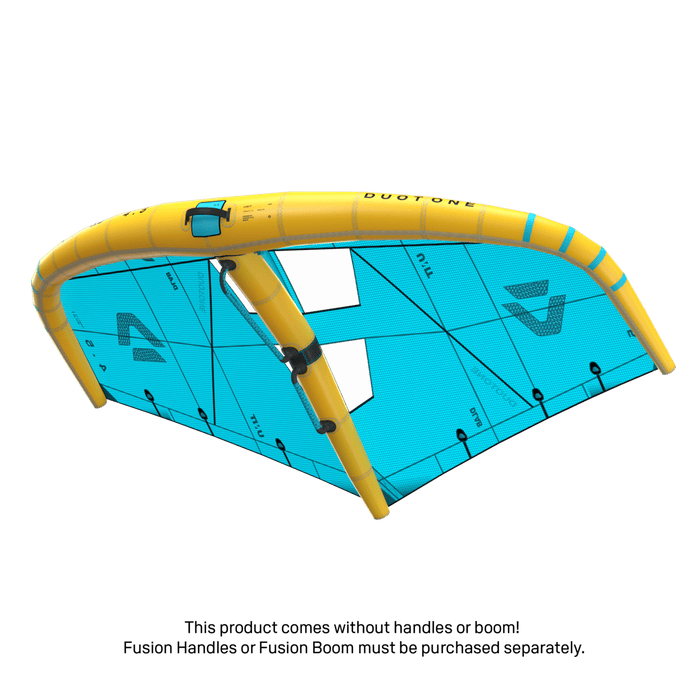

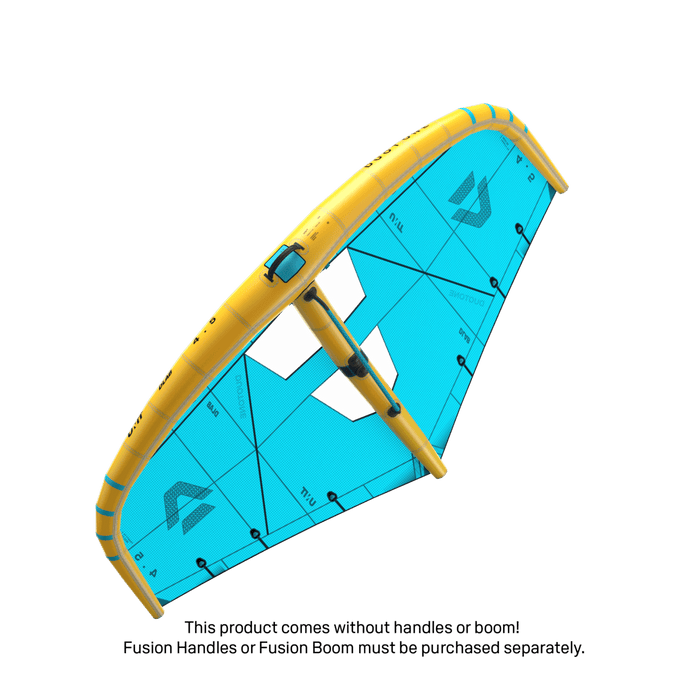

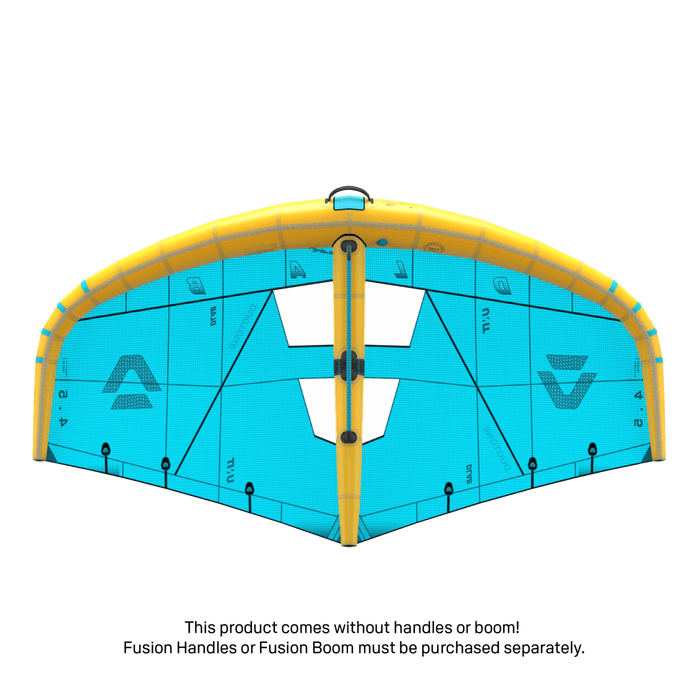

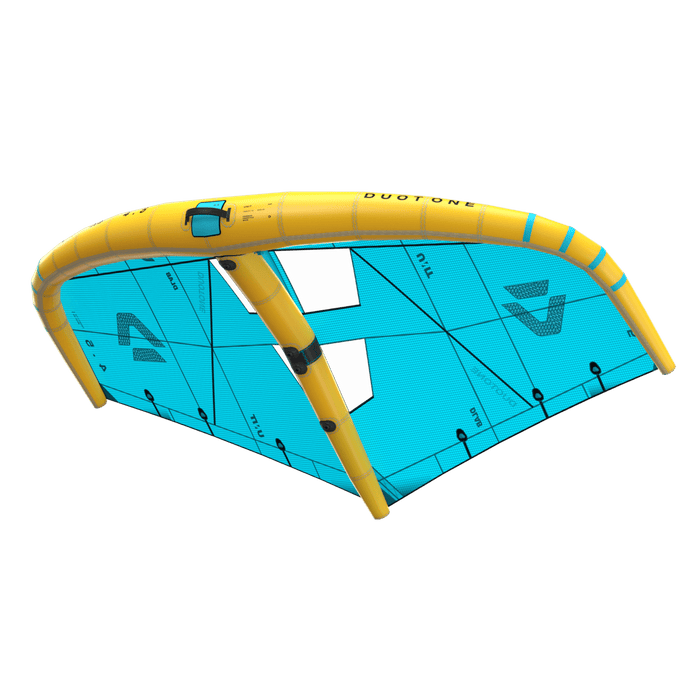

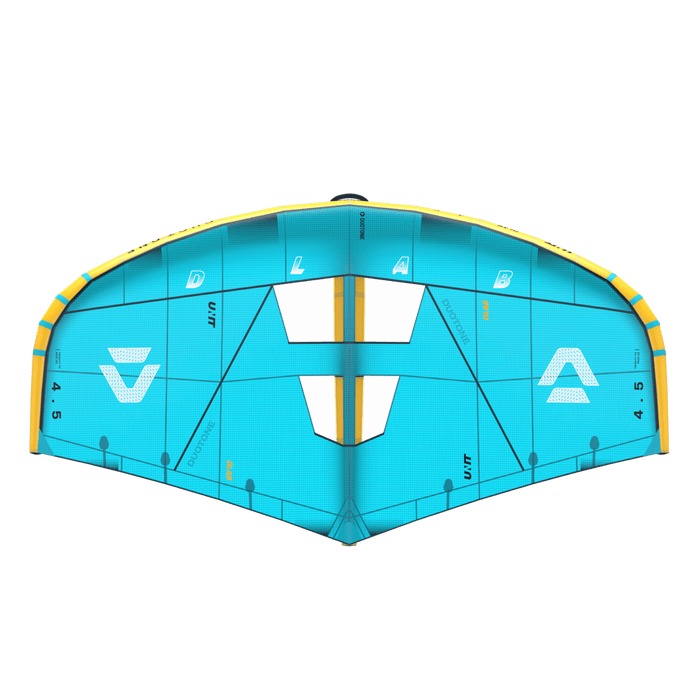

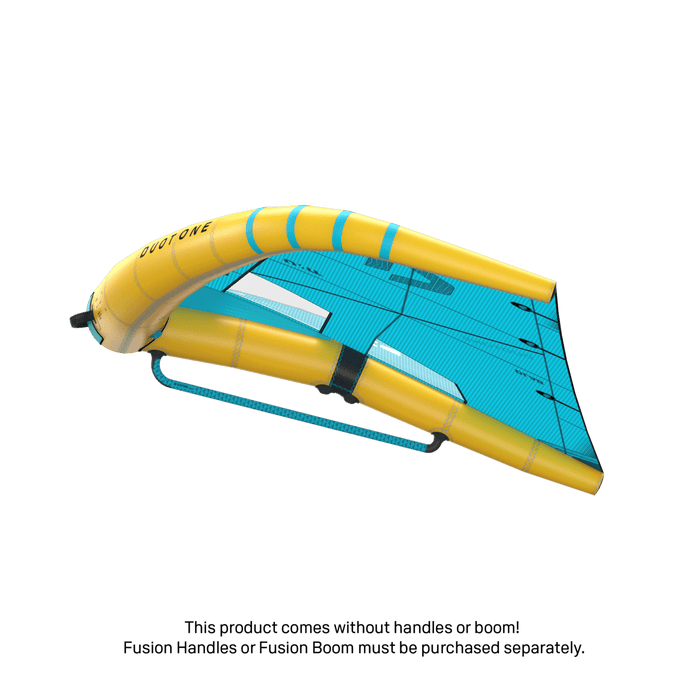

Duotone Unit D/LAB 2027 – Ultimate Performance Wing The 2027 Unit D/LAB is the lightest, stiffest, and most responsive wing in the range, built for maximum performance and efficiency. A shorter strut improves maneuverability and control, while the reduced leading edge diameter lowers drag and increases speed.
Refined canopy shaping ensures precise power delivery, stable flagging, and an ultra-direct response, with improved visibility from the updated window layout. Featuring a full Aluula Gold frame, the Unit D/LAB delivers unmatched stiffness and weight reduction for a highly reactive and efficient riding experience.
Key Features: • Full Aluula Gold frame for ultimate performance • Reduced leading edge diameter for speed and efficiency • Shorter strut for compact handling • Precise power delivery and stable flagging • Refined canopy for maximum responsiveness • New window layout for improved visibility • Fusion boom or handle setup options Built to push performance beyond imagination.
Key features
-
Compact Handling: The shorter strut design reduces swing weight and creates a more compact wing feel for enhanced maneuverability and smoother handling.
-
Effortless Flagging: The refined profile distribution keeps the wing balanced and stable while surfing, allowing smooth drift and intuitive wave riding.
-
Instant Power Delivery: The full Aluula Gold frame maximizes stiffness while minimizing weight, delivering immediate response and exceptional efficiency.
-
Performance without Compromise: Built for demanding freeride, freestyle, and wave riding, the Unit D/LAB combines maximum efficiency, direct response, and uncompromised control across all disciplines.
-
Precision Control: Optimized canopy tension and tip twist create exceptional draft stability, direct feedback, and precise control in all conditions.
-
Reduced Drag & Increased Speed: A reduced leading-edge diameter lowers drag and enhances acceleration for higher speeds and improved upwind performance.
Technical features▼
Full Aluula Gold Frame (82g)
The lightest and stiffest frame construction in the range delivers instant power transfer, exceptional efficiency, and unmatched responsiveness.
Fusion Boom & Handle Option
Allows riders to choose between boom and handle setups, adapting the wing to individual preferences and riding styles.
MOD3s Canopy
High-performance canopy material providing excellent durability, draft stability, and long-lasting performance.
Molded Mini Batten Pockets
Help maintain canopy stability and ensure consistent performance over the long term
New Window Layout
Improves visibility and awareness on the water without compromising the wing’s performance characteristics.
Optimized Canopy Tension & Tip Twist
Creates a cleaner canopy profile with exceptional draft stability, immediate response, and precise control.
Reduced Leading Edge Diameter
Reduces aerodynamic drag and increases speed while maintaining precise control and efficient power delivery.
Refined Profile Distribution
Less profile depth in the center and more towards the quarter span improve power efficiency while enhancing flagging stability.
Shorter Strut
Creates a more compact wing with reduced swing weight, improving maneuverability and delivering smoother handling in all conditions.
Wide Leading Edge Handle
Provides effortless one-handed control and intuitive wing positioning while surfing and flagging.
Tech spec
| Size |
2.0 |
2.5 |
3.0 |
3.5 |
4.0 |
4.5 |
5.0 |
5.5 |
6.0 |
6.5 |
| Windrange (kts) |
27-45 |
23-40 |
19-37 |
16-33 |
14-30 |
12-28 |
10-25 |
9-22 |
8-20 |
7-18 |
| Weight (kg) (without handles or boom) |
TBA |
TBA |
TBA |
TBA |
TBA |
TBA |
TBA |
TBA |
TBA |
TBA |
| Wingspan (cm) |
223 |
244 |
263 |
283 |
300 |
318 |
329 |
346 |
360 |
376 |
| Max inflation pressure * |
11.0 PSI |
10.5 PSI |
10.0 PSI |
9.5 PSI |
9.0 PSI |
8.5 PSI |
8.0 PSI |
7.5 PSI |
7.0 PSI |
7.0 PSI |
| Fusion Handle Size (not included) |
- |
M (43/31cm) |
M (43/31cm) |
L (55/31cm) |
L (55/31cm) |
L (55/31cm) |
L (55/31cm) |
L (55/31cm) |
L (55/31cm) |
L (55/31cm) |
| Fusion Boom Size (not included) |
S (72cm) |
M (84cm) |
M (84cm) |
L (96cm) |
L (96cm) |
L (96cm) |
L (96cm) |
L (96cm) |
L (96cm) |
L (96cm) |
| Rec. Leash size |
4'' (M) |
4'' (M) |
4'' (M) |
4'' (M) |
4'' (M) |
4'' (M) |
5'' (L) |
5'' (L) |
5'' (L) |
5'' (L) |
